Guangdong Kamtat Lighting Technology Joint Stock Co., Ltd.

Basic Info

    Model No.: KT-DEC-LT801

    Certification: VDE, FCC, LVD, EMC, RoHS, CE

    Power: Other

    Emitting Color: Other

    Voltage: 12V

    IP Rating: IP54

Product Description

We developed a new DMX to PWM dimming driver which has solved the compatible problem of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems such as Lutron, Dynalite, Tridonic, Schneider, Clipsal, Osram, Philips, Helar, ABB, etc.

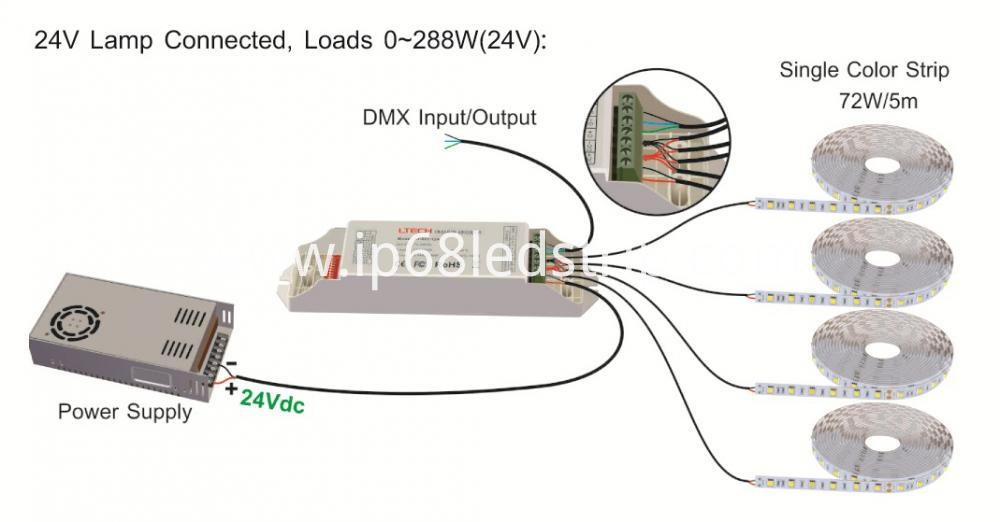

KT-DEC-LT801 can load Max 12A current, 12V can load Max 144W, 24V can load Max 288W.

KT-DEC-LT801 is designed for dimming, dimming effect is superior to conventional DMX decoder, 0-100% PWM depth dimming, output with the dimming curve that is more palatable to human vision, provide the user with more comfortable and natural lighting experience.

Product Parameter:
Input signal: DMX 512 DIMMING Range: 1~100%

Input voltage: 12-24vdc Working temperature: -30℃~55℃

Output voltage: 12-24vdc Dimensions: L175×W44×H30mm

Max current load: 12A*1 CH MAX 12A Package size: L178×W48×H33mm

Max Output Power: 144W/288W(12V/24V) Weight (G.W.): 130g

DMX-PWM CV Decoder

LT-801-12A_EN-3

Looking for ideal PWM DMX Controller Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 12V 24V DMX Decoder are quality guaranteed. We are China Origin Factory of PWM Constant Voltage Decoder. If you have any question, please feel free to contact us.

Product Categories : Strip Light Accessories > Led Strip Light Controller
